電氣額定值
額定電壓 250VAC（and 125VAC）
額定電流 10安培 (and 15A)
|
◎ 額定溫度范圍 |
|
Cat NO. |
Tf |
Cutoff temperature |
Th |
K-mark |
UL |
C-UL |
VDE |
TUV |
CCC |
PSE |
|
SW-102T |
72℃ |
70℃+2℃,-2℃ |
57℃ |
● |
● |
● |
● |
● |
● |
● |
|
SW-105T |
77℃ |
77℃+0℃,-4℃ |
62℃ |
● |
● |
● |
● |
● |
● |
● |
|
SW-109T* |
84℃ |
84℃+0℃,-5℃ |
69℃ |
● |
● |
● |
● |
● |
● |
● |
|
SW-152T |
90℃ |
90℃+0℃,-4℃ |
75℃ |
● |
● |
● |
● |
□ |
□ |
● |
|
SW-106T |
91℃ |
91℃+0℃,-4℃ |
76℃ |
● |
● |
● |
● |
□ |
□ |
● |
|
SW-153T |
93℃ |
93℃+0℃,-5℃ |
78℃ |
● |
● |
● |
● |
□ |
□ |
● |
|
SW-104T |
98℃ |
98℃+2℃,-2℃ |
83℃ |
● |
● |
● |
● |
● |
● |
● |
|
SW-108T* |
100℃ |
100℃+0℃,-5℃ |
85℃ |
● |
● |
● |
● |
● |
● |
● |
|
SW-110T* |
109℃ |
109℃+0℃,-5℃ |
94℃ |
● |
● |
● |
● |
● |
● |
● |
|
SW-111T |
121℃ |
121℃+0℃,-5℃ |
106℃ |
● |
● |
● |
● |
● |
□ |
● |
|
SW-115T |
126℃ |
126℃+0℃,-4℃ |
111℃ |
● |
● |
● |
● |
● |
● |
● |
|
SW-129T |
128℃ |
128℃+0℃,-5℃ |
113℃ |
● |
● |
● |
● |
● |
● |
● |
|
SW-114T* |
139℃ |
139℃+0℃,-4℃ |
124℃ |
● |
● |
● |
● |
● |
● |
● |
|
SW-138T |
144℃ |
144℃+0℃,-5℃ |
127℃ |
● |
● |
● |
● |
● |
● |
● |
|
SW-116T |
152℃ |
152℃+0℃,-4℃ |
137℃ |
● |
● |
● |
● |
● |
● |
● |
|
SW-120T |
167℃ |
167℃+0℃,-4℃ |
152℃ |
● |
● |
● |
● |
● |
● |
● |
|
SW-118T |
169℃ |
169℃+0℃,-5℃ |
154℃ |
● |
|
|
|
|
|
● |
|
SW-127T |
184℃ |
184℃+0℃,-6℃ |
169℃ |
● |
● |
● |
● |
● |
● |
● |
|
SW-122T |
192℃ |
192℃+3℃,-3℃ |
177℃ |
● |
|
|
|
|
|
● |
|
SW-125T |
195℃ |
195℃+0℃,-6℃ |
180℃ |
● |
● |
● |
● |
● |
● |
● |
|
SW-139T |
216℃ |
216℃+0℃,-6℃ |
200℃ |
● |
● |
● |
● |
● |
□ |
● |
|
SW-124T |
228℃ |
228℃+0℃,-6℃ |
200℃ |
● |
● |
● |
● |
● |
□ |
● |
|
SW-128T* |
240℃ |
240℃+0℃,-6℃ |
200℃ |
● |
● |
● |
● |
● |
● |
● |
|
|
UL file NO : E126429 ● = Approved □ = Applied
*Dual Rations(UL approved) - 250V 10A and 125V 15A |
|
◎ 電氣參數
額定電壓 : 250V, AC (and 125V)
額定電流 : 10A (and 15A)
頻率 : 50 or 60Hz
最大允許插入電流 : 250V, ac 15A
瞬間過載電流 : DC電流脈沖，峰值150 A 接通3 毫秒后間隔10 秒？芍辽偻ㄟ^100個循環的測試。 |
|
|
|

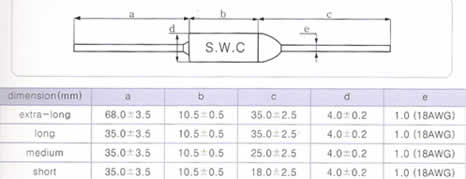

◎ 構造 |
|
