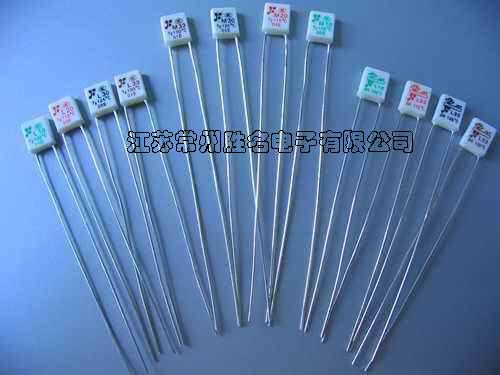

Product type:Temperature fuse Thermal Cutoff - Square | hot fusing body temperature fuse

Name:M10|M30M20M33temperature fuse

Item:M10M20M30M33L10L20L30L331A2A

Description:

M(L)10-M(L)30溫度保險絲
	產品編號：	M系列/L系列
	產品名稱：	溫度保險絲


	產品類別：	溫度保險絲(熱熔斷器)

產 品說明

概述
本系列熱熔斷體,以一低熔點合金之感溫體為主要部件。當環境溫度升高并達到上述感溫體的熔點時，感溫體熔解并在內裝的助熔劑邦助下，于引線端頭縮成珠狀物，由此切斷電通路。
規格表

TYPE	T_F℃	T_H℃	T_M℃	ELECTRICAL RATINGS (A.C.) / SAFETY APPROVAL
TYPE	T_F℃	T_H℃	T_M℃	U L	C-UL	TUV	CCC	KETI	PSE(JET)	VDE	BEAB
M10	102 + 0 -10	75	165	1A/250V 2.5A/125V	1A/250V 2.5A/125V	2A/250V	2A/250V	2A/250V	———	———	———
M20	115 + 0 -10	85	165	1A/250V 2.5A/125V	1A/250V 2.5A/125V	2A/250V	2A/250V	2A/250V	———	———	———
M30	125 + 0 -10	90	165	1A/250V 2.5A/125V	1A/250V 2.5A/125V	2A/250V	2A/250V	2A/250V	———	———	———
M33	130 + 0 -10	100	165	1A/250V 2.5A/125V	1A/250V 2.5A/125V	2A/250V	2A/250V	2A/250V	———	———	———
L10 RoHS compliant	102 + 0 -10	75	165	1A/250V 2.5A/125V	1A/250V 2.5A/125V	2A/250V	2A/250V	2A/250V	2A/250V	2A/250V	———
L20 RoHS compliant	115 + 0 -10	85 ( for ref. )	165	1A/250V 2.5A/125V	1A/250V 2.5A/125V	2A/250V	2A/250V	2A/250V	2A/250V	2A/250V	1A/250V
L30 RoHS compliant	125 + 0 -10	90 ( for ref. )	165	———	———	2A/250V	2A/250V	2A/250V	2A/250V	2A/250V	1A/250V
L33 RoHS compliant	130 + 0 -10	100 ( for ref. )	165	2.5A/125V	2.5A/125V	2A/250V	2A/250V	2A/250V	2A/250V	2A/250V	1A/250V

安規: UL, CUL, CSA, BEAB, TUV, VDE, MITI

① T_F—標稱動作溫度
② T_OFF –實際斷開溫范圍:在規定條件下測得的使熱熔體導電狀態改變之溫度范圍。
③ T_H —保持溫度: 熱熔斷體在規定條件下和規定時間內不會改變其導電狀態的最高溫度。
④ T_M – 極限溫度: 在此溫度下，熱熔斷體導電狀態已改變，但其機械性能及電氣性能在規定時間內不致改變。

100度110度120度130度140度155度165度185度200度210度230度250度285度320度
102度115度120度130度M10M20M30M33L10L20L30L331A2A
P1|P2|P3|P4|P5|A1|A2|A3|A4|A5|M10|M30M20M33M31M12M13|L10L20L30L33
愛默生TCO/G4/G5|NEC|SWc|sefuse|RH|RY|RH01|RH02|RH03|RH04|RH05|D|SW|RYE|DF|BF|AUPO
UL|VDE|CSA|PSE|K認證TAm|SFE|SFY|UMi|富士|內橋|雅寶| 常州勝名電子有限公司
73度99度77度94度113度121度133度142度157度172度192度216度227度240度
70度77度84度92度95度105度110度115度121度128度130度139度141度144度152度157度169度184度185度192度216度227度228度240度250度280度320度
